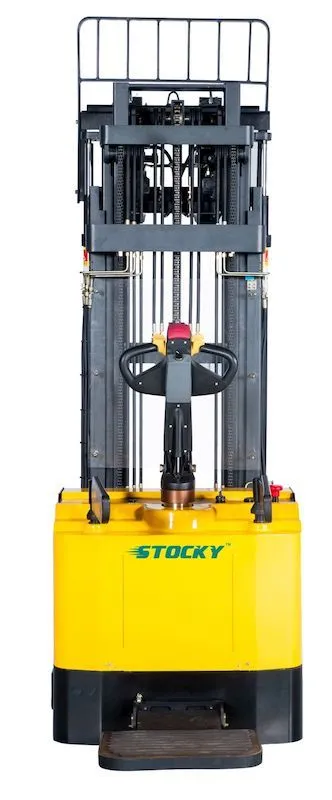

Model #S02-02-ERS12M
Capacity kg 1200
Load Center mm 600
Reach Distance mm 400
Lifting Height(Dual Mast) mm 3000
Fork Length mm 1070
Overall Fork Width mm 200-680
Fork Width mm 100
Fork Thickness mm 35
Min. Turning Radius mm 1491
Lowered Height Of Fork mm 70
Free Lifting Height mm Option
Fork Tilt Degree (Forward/Backward) � 2� / 5�
Aisle Width With 800*1200mm Pallet (without platform, dual mast) mm 2701
Aisle Width With 800*1200mm Pallet (with platform, dual mast) mm 3222
Aisle Width With 1000*1200mm Pallet (without platform, dual mast) mm 2745
Aisle Width With 1000*1200mm Pallet (with platform, dual mast) mm 3266
