KEY FEATURES
- Large jog wheels and MAGVEL FADER for dynamic scratching
- Scratch-style layout for open-format freedom
- Dedicated buttons for easy Stems control
- New Auto BPM Transition for smooth mixing
- New Piano Play mode for intuitive musical performances
- Multiple inputs and outputs plus 2 USB Type-C ports for smooth DJ transitions
- Serato DJ Pro and rekordbox plug-and-play compatibility
DESCRIPTION

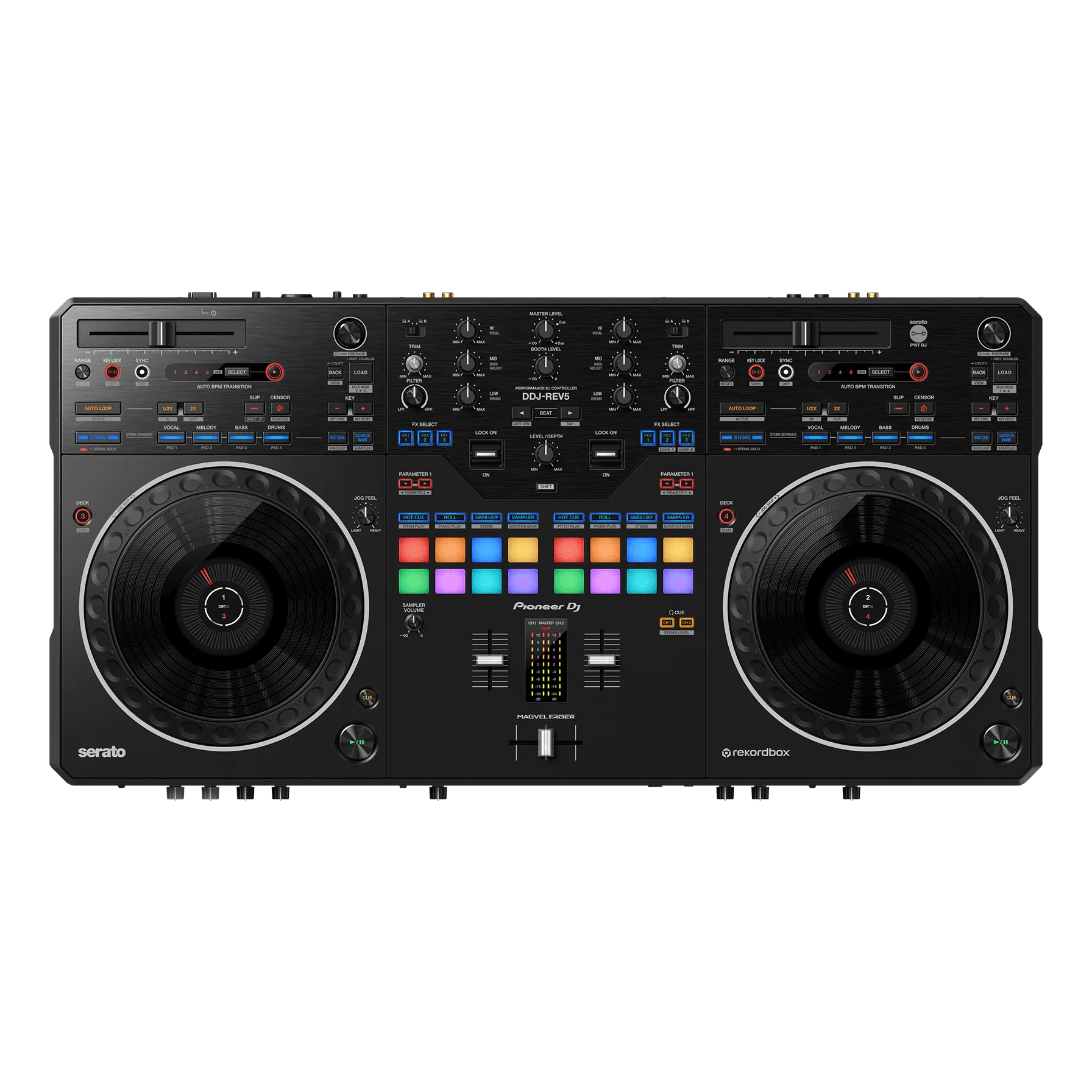

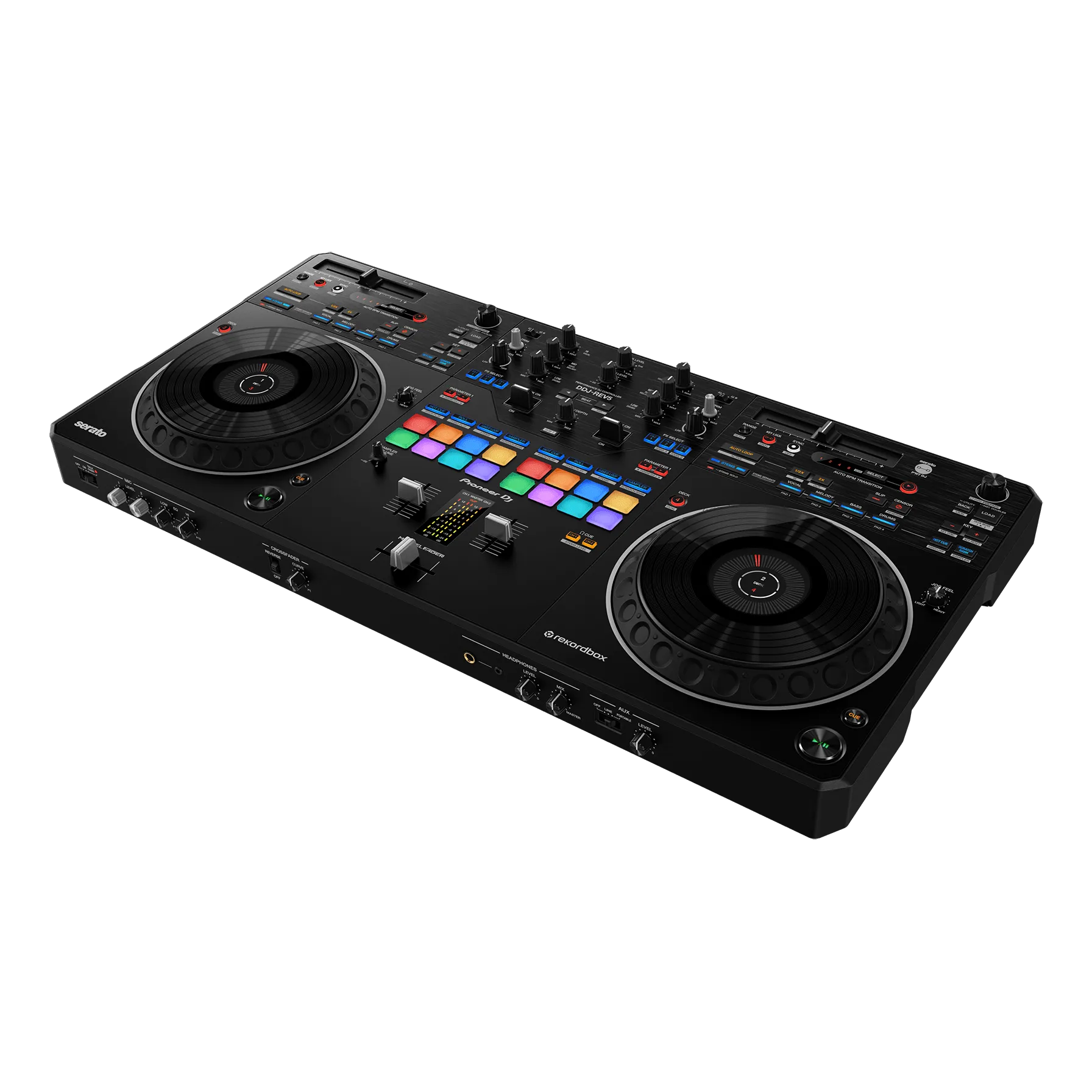

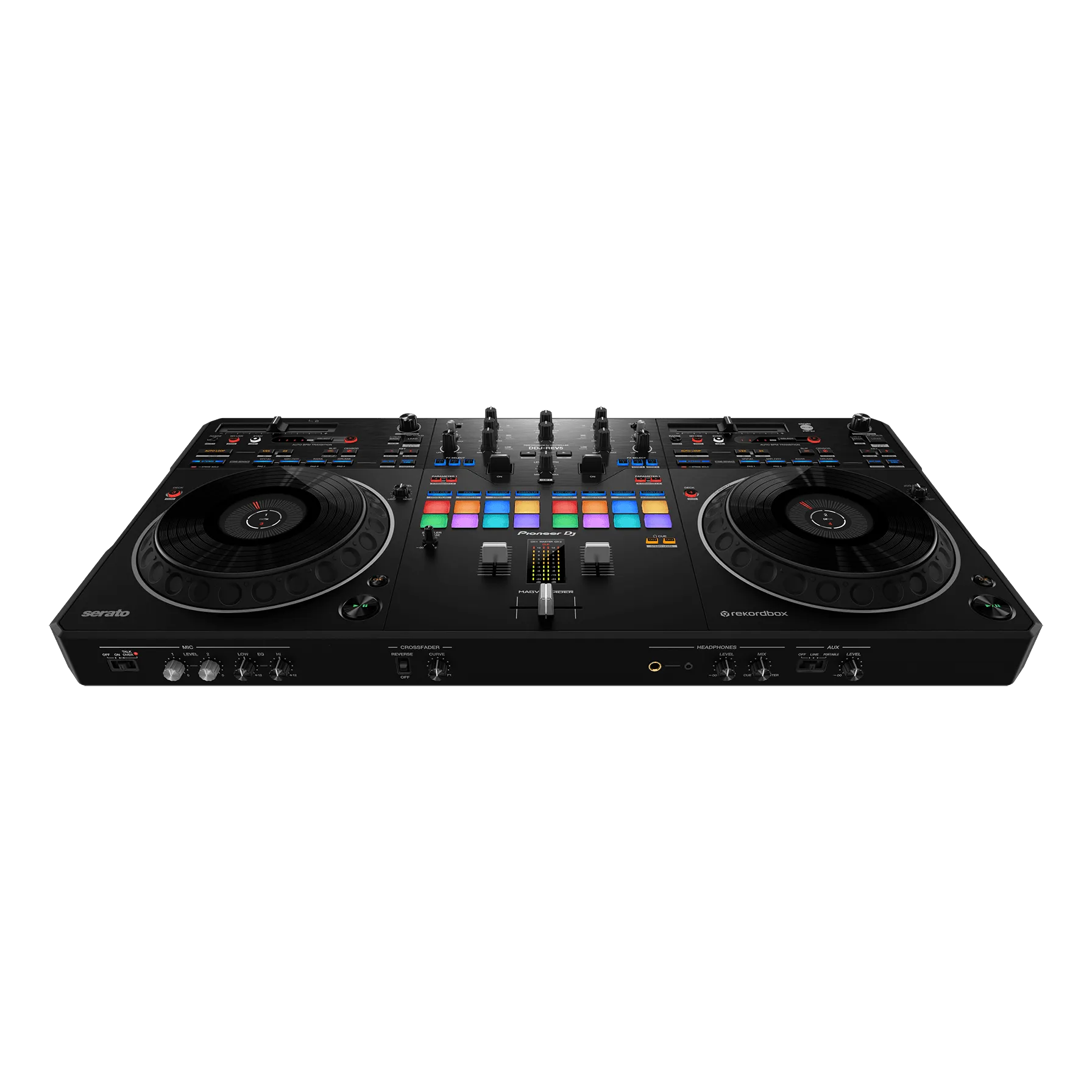

The DDJ-REV5 is a new-generation controller with Serato DJ Pro and rekordbox compatibility. This 2-channel unit offers an authentic scratch experience and innovative features including its large jogs, MAGVEL FADER, dedicated buttons for Stems control, the first-ever Auto BPM Transition, and Piano Play mode.
SPECIFICATIONS
| Compatible DJ Software | Serato DJ Pro rekordbox |
| Software System Requirements | Visit serato.com for its specifications. Visit rekordbox.com for its specifications. |
| Accessories | DDJ-REV5 AC adaptor Power cord USB cable Warranty (for some regions) Quick Start Guide Precautions for use Serato DJ Pro Pitch ’n Time DJ voucher |
| Frequency Range | 20 - 20000 Hz |
| Channels | 2 |
| Deck Control | 4 / Dual |
| Jog Wheel (Maximum Dimensions) | 206 mm |
| Sampler | 8slot x 4bank |
| Hot Cues | 8 |
| Pad Modes rekordbox | Hot Cue Pad FX 1 Beat Jump Sampler Keyboard Piano Play Beat Loop Sample Scratch (rekordbox) |
| Pad modes Serato | Hot Cue Roll Saved Loop Sampler Pitch Play Piano Play Stems Scratch Bank Saved Flip Slicer Loop |
| Auto Loop/Auto Beat Loop | Yes |

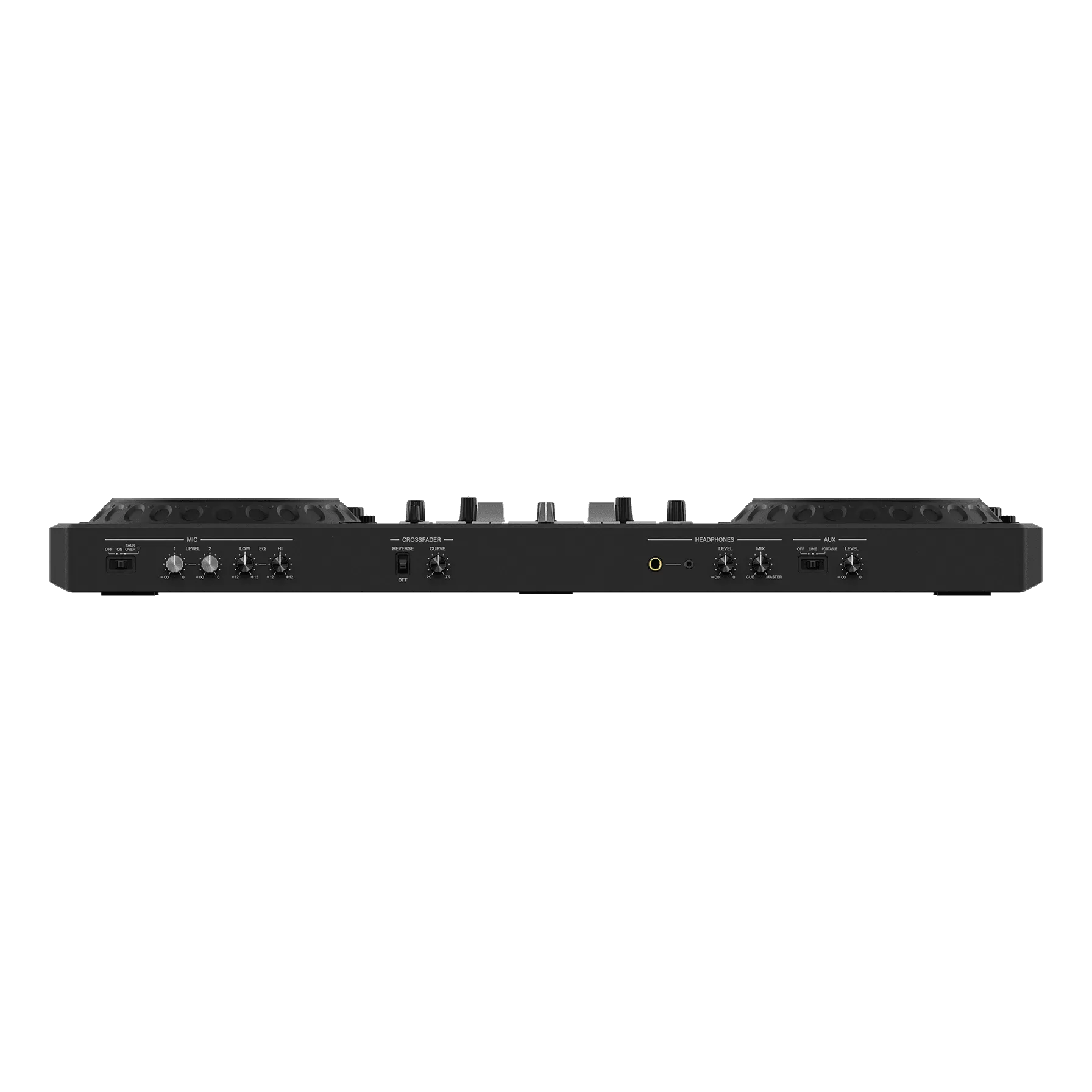

| Inputs | 2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack) 1 AUX (RCA) |

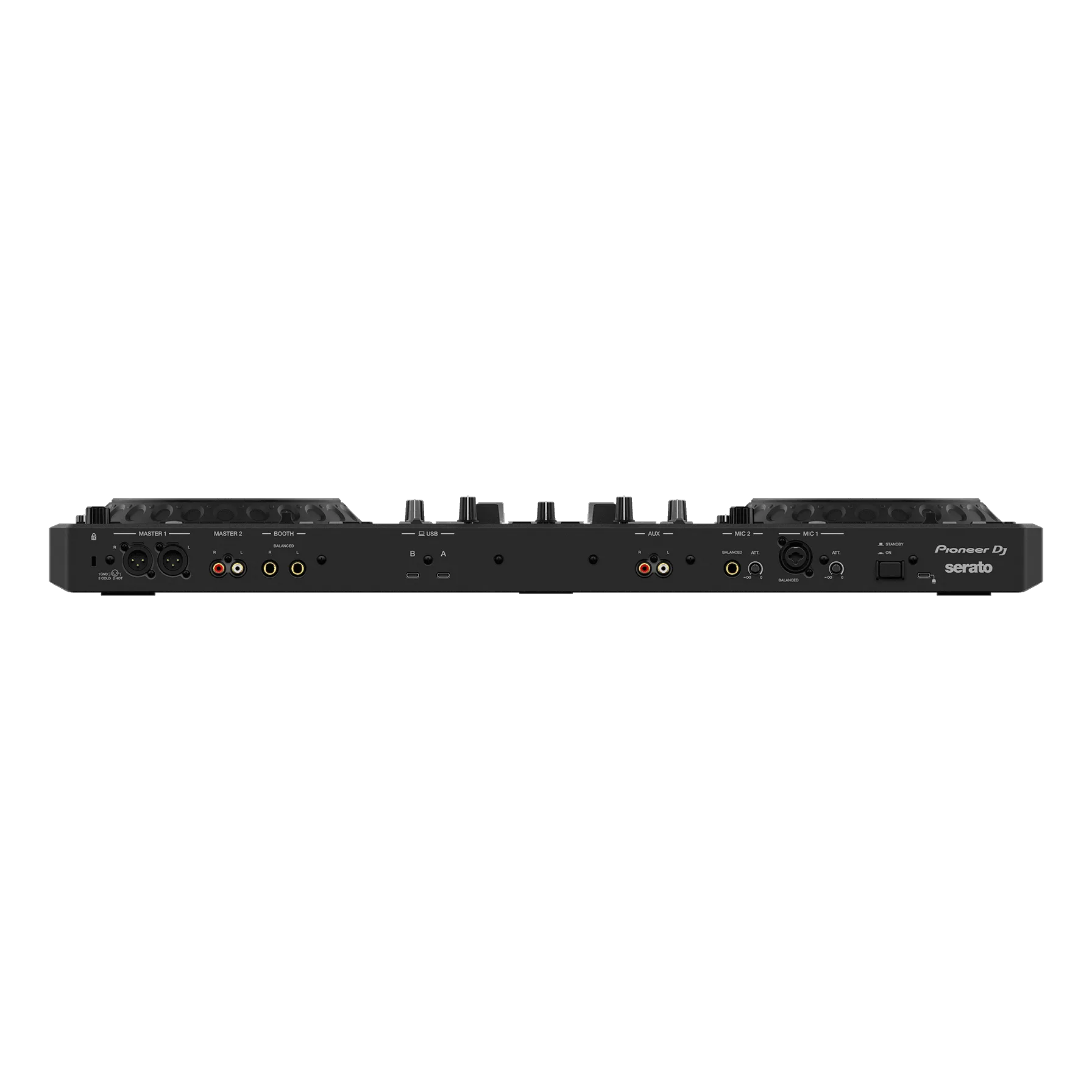

| Outputs | 2 MASTER (XLR, RCA) 1 BOOTH (1/4 inch TRS Jack) 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack) |
| USB | 3 USB Type-C port (PC/Mac connection x 2, power supply x 1) |
| Soundcard | 24 bit/48 kHz |
| Signal-to-Noise Ratio | 110 dB |
| Distortion | < 0.003 % (USB) |
| Power Consumption | DC 5 V, 3 000 mA |
| Weight | 13.67 lb |
| Height | 2.89 in |
| Width | 28.98 in |
| Depth | 14.85 in |
