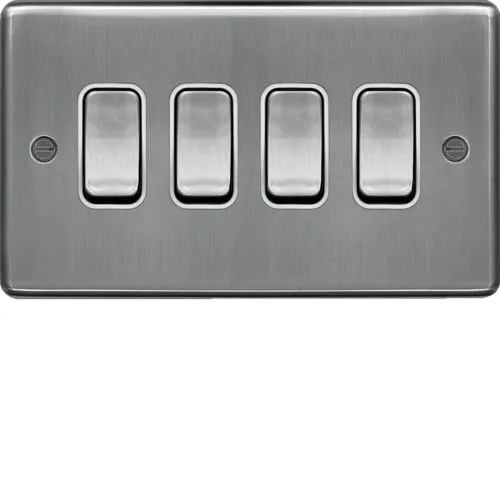

Hager WRPS42BSW Sollysta Raised Plate 10AX 4 Gang 2 Way Wall Switch - Brushed Steel White Insert

• Unique patented LOOP terminal to allow neutral looping at the switch
• Complies with BS EN 60669-1, a.c only
• ‘X’ rated - No need to de-rate for fluorescent loads
• Capacity of each terminal 2 x 4.0mm² conductors
• For multi-gang switches, use of a 25mm mounting box will provide increased wiring space
• Supplied with M3.5 x 20mm long fixing screws

Specification

• Switch mode: 2 way
• Rated current: 10AX
• Depth: 24 mm
• Height: 86 mm
• Width: 146 mm
• Colour: stainless steel optics
• Material: stainless steel
• Insert: white
• Component: with 2 fixing screws M3.5 x 30 mm
