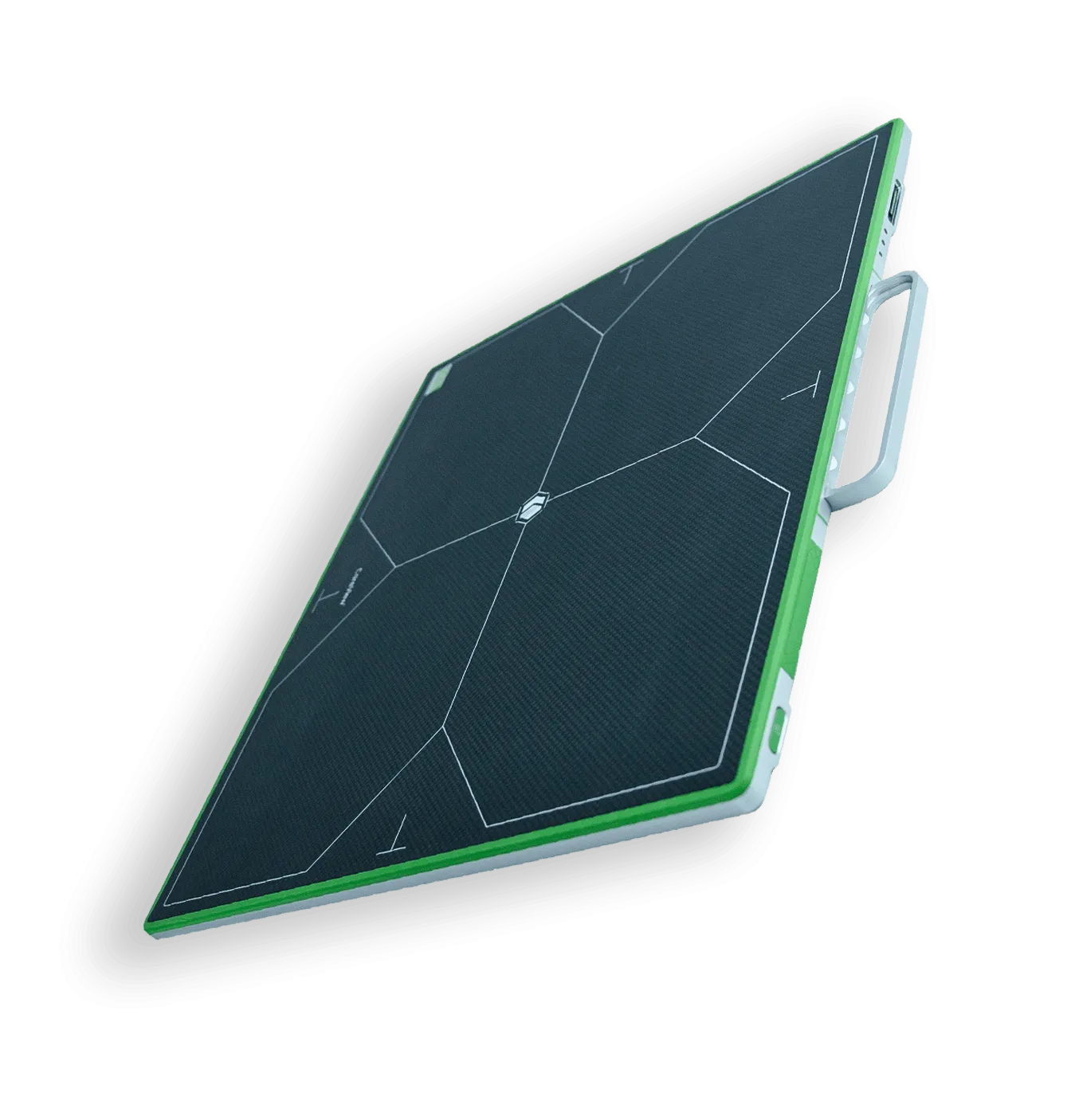

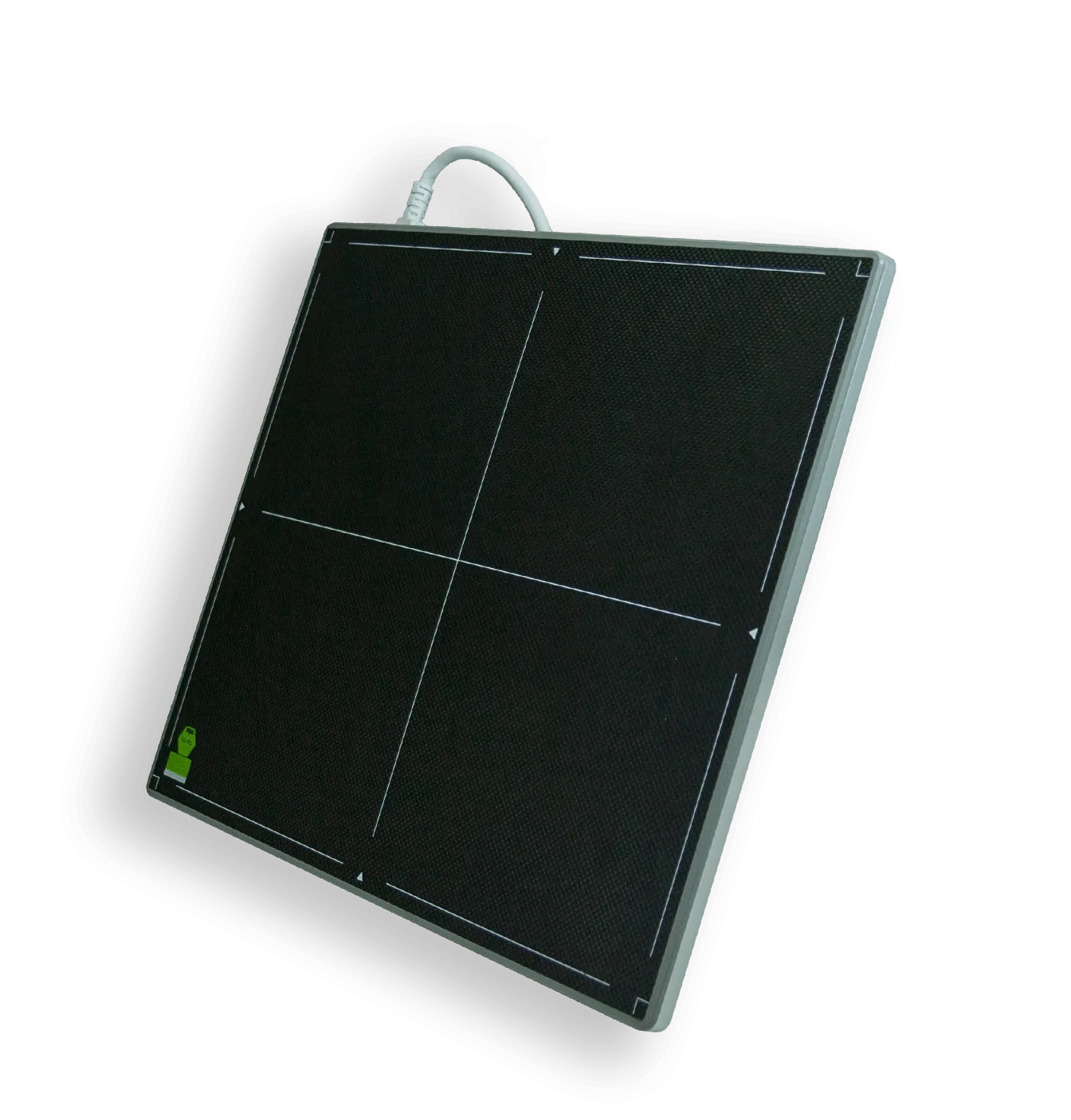

CareView 1800-CW: With Handle - 17”x17” Wireless Detector with Cesium-Iodide (Csl) Scintillator • Scintillator: Cesium-Iodide (Csl)

• Active Area: 17” x 17” (434 x 434mm)
• Pixel Array: 2816 x 2816 | Pixel Pitch: 154 micron (Nyquist Resolution 3.3 lp/mm) | Grayscale: 16 bits
• Dimensions: 18.1” x 18.1” x .59” (460 x 460 x 15mm), Weight: 8.5 lbs. (3.9kg)
• AED – Automatic Exposure Detection – Eliminates wiring to generator
• High strength aluminum alloy back, carbon fiber front Includes: Power Supply: (100-240 V AC) 1 Battery Communication Interface: Gigabit Ethernet Standard Gigabit Ethernet port for optional wired operation and battery charging 5-Yr Warranty on DR detector for manufacturing defects (See optional detector warranty extension)

*Detector panel warranty term is five years (60 months) Covers mechanical failure and malfunction of the products caused by a deficient design, factory defect and faulty workmanship per manufacturer’s conditions/terms or as specified differently in quote text

ExamVue DR Acquisition Console Software

• Patient Registration: Manually or (DMWL) DICOM Modality Worklist. DICOM Modality Worklist is a standard feature and is available for use provided that the HIS/RIS accommodates Modality Worklist.
• Processing Parameter Settings: Pediatric, Small, Medium, Large Adult, Edge Enhancement, Histogram, Contrast, Latitude
• Image Acquisition & Review QC: flip (horizontal/vertical), rotate (clockwise/counter-clockwise), zoom, pan, window/level, magnifying glass, crop, annotations line measurement, angle measurement, free text, arrow, L&R Markers, Cobb’s Angle Measurement, Norberg Angle Measurement
• Allows for secondary/dual monitor display
• Emergency Mode: Allows exam to be conducted while no patient data available • Image Preview
• DICOM Send to PACS, Auto-PACS Send
• DICOM Print to DICOM Printer
• DICOM Storage Commitment
• Hard disk capacity notification bar
• Export images formatted as .jpg, .png, .bmp, and DICOM (with or without Viewer) to CD or other media
• Export/Back-up to DVD/Removable Drive
• Procedure Code Matching – Matches body part and projection items with RIS/HIS code
• Database: Shows list of stored images after acquisition
• Compare two images side-by-side
• Delete Image
• Repeat- Reject function with operator statistics
• Grid Line Removal • Stitching Software
• AED Mode – Automatic Exposure Detection: The detector detects actual amount of x-rays without any connection to the X-ray generator, and then performs image acquiring according to image acquisition time and transmits the image data – No signal used (no need to connect to generator interface cable)
• Exposure Index

HOST PC - SPECIFICATION SUBJECT TO CHANGE

• Intel Core i5-6500 (QC/6MB /4T/3.2GHz/65W)
• Windows 10 Professional, 64 bit • 8GB Ram, 1600MHz • 1TB RAID 1 Hard Drive
• 21.5 MONITOR • Full HD Resolution 1920 x 1080 pixels, 2MP • Keyboard and Mouse
• (3 Year Limited Hardware Warranty on PC and Monitor) Remote Service Support Software
• TEAM-Viewer Remote Access Software Included (allows for WEB-Based Remote dial-up support)

12 Month support contract for JPI image acquisition software for a single modality. Software support covers phone support and remote login for the resolution of issues with JPI software only. It does not cover IT issues beyond identifying that it is an issue external to the JPI software. Full terms laid out in support contract.

CR-DIP-5: 5 Years of drop coverage with no annual premium. Deductible due per drop. See terms and conditions for full details

Backup battery for ExamVue DRCW panel

ExamVue DRCW battery charging dock
